Utopia::Models::SandPile::SandPile Class Reference

The SandPile Model. More...

#include <SandPile.hh>

Inheritance diagram for Utopia::Models::SandPile::SandPile:

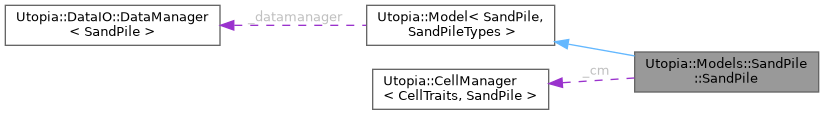

Collaboration diagram for Utopia::Models::SandPile::SandPile:

Public Types
using	Base = Model< SandPile, SandPileTypes >
	The base model's type.
using	CellManager = Utopia::CellManager< CellTraits, SandPile >
	The type of the cell manager.
using	Cell = typename CellManager::Cell
	Cell type.
using	CellContainer = std::vector< std::shared_ptr< Cell > >
	Cell container type.
using	RuleFunc = typename CellManager::RuleFunc
	Supply a type for rule functions that are applied to cells.
using	DataSet = typename Base::DataSet
	Data type for a dataset.
using	UniformIntDist = typename std::uniform_int_distribution< std::size_t >
	The uniform integer distribution type to use.
Public Types inherited from Utopia::Model< SandPile, SandPileTypes >
using	Config = typename ModelTypes::Config
	Data type that holds the configuration.
using	DataManager = DataIO::Default::DefaultDataManager< SandPile >
	The data manager to use, specialized with the derived model.
using	DataGroup = typename ModelTypes::DataGroup
	Data type that is used for storing datasets.
using	DataSet = typename ModelTypes::DataSet
	Data type that is used for storing data.
using	RNG = typename ModelTypes::RNG
	Data type of the shared RNG.
using	Space = typename ModelTypes::Space
	Data type of the space this model resides in.
using	Time = typename ModelTypes::Time
	Data type for the model time.
using	Monitor = typename ModelTypes::Monitor
	Data type for the monitor.
using	MonitorManager = typename ModelTypes::MonitorManager
	Data type for the monitor manager.
using	Level = typename ModelTypes::Level
	Data type for the hierarchical level.

Public Member Functions
template<class ParentModel >
	SandPile (const std::string &name, ParentModel &parent_model, const DataIO::Config &custom_cfg={})
	Construct the SandPile model.
void	perform_step ()
	Perform an iteration step.
void	monitor ()
	Supply monitor information to the frontend.
void	write_data ()
	Write the cell slope and avalanche flag to the datasets.
Public Member Functions inherited from Utopia::Model< SandPile, SandPileTypes >
	Model (const std::string &name, const ParentModel &parent_model, const Config &custom_cfg={}, std::tuple< WriterArgs... > w_args={}, const DataIO::Default::DefaultDecidermap< SandPile > &w_deciders=DataIO::Default::default_deciders< SandPile >, const DataIO::Default::DefaultTriggermap< SandPile > &w_triggers=DataIO::Default::default_triggers< SandPile >)
	Constructs a Model instance.
const std::shared_ptr< Space > &	get_space () const
	Return the space this model resides in.
Time	get_time () const
	Return the current time of this model.
Time	get_time_max () const
	Return the maximum time possible for this model.
Config	get_cfg () const
	Return the config node of this model.
std::string	get_name () const
	Return the name of this model instance.
std::string	get_full_name () const
	Return the full name of this model within the model hierarchy.
std::shared_ptr< DataGroup >	get_hdfgrp () const
	Return a pointer to the HDF group this model stores data in.
Time	get_write_start () const
	Return the parameter that controls when write_data is called first.
Time	get_write_every () const
	Return the parameter that controls how often write_data is called.
DataManager	get_datamanager () const
	return the datamanager
hsize_t	get_remaining_num_writes () const
	Return the number of remaining write_data calls this model will make.
std::shared_ptr< RNG >	get_rng () const
	Return a pointer to the shared RNG.
std::shared_ptr< spdlog::logger >	get_logger () const
	Return a pointer to the logger of this model.
Monitor	get_monitor () const
	Return the monitor of this model.
std::shared_ptr< MonitorManager >	get_monitor_manager () const
	Get the monitor manager of the root model.
Level	get_level () const
	Return the hierarchical level within the model hierarchy.
virtual void	prolog ()
	A function that is called before starting model iteration.
virtual void	epilog ()
	A function that is called after the last iteration of a model.
void	iterate ()
	Iterate one (time) step of this model.
void	run ()
	Run the model from the current time to the maximum time.
std::shared_ptr< DataSet >	create_dset (const std::string name, const std::shared_ptr< DataGroup > &hdfgrp, std::vector< hsize_t > add_write_shape, const std::size_t compression_level=1, const std::vector< hsize_t > chunksize={})
	Create a new dataset within the given group.
std::shared_ptr< DataSet >	create_dset (const std::string name, const std::vector< hsize_t > add_write_shape, const std::size_t compression_level=1, const std::vector< hsize_t > chunksize={})
	Create a new dataset within the model's base data group.
std::shared_ptr< DataSet >	create_cm_dset (const std::string name, const CellManager &cm, const std::size_t compression_level=1, const std::vector< hsize_t > chunksize={})
	Create a dataset storing data from a CellManager.
std::shared_ptr< DataSet >	create_am_dset (const std::string name, const AgentManager &am, const std::size_t compression_level=1, const std::vector< hsize_t > chunksize={})
	Create a dataset storing data from a AgentManager.

Private Member Functions
unsigned int	avalanche_size () const
	Calculate the avalanche size.
const std::shared_ptr< Cell > &	add_sand_grain ()
	Select a random cell, add a grain of sand to it, and return it.
void	topple (const std::shared_ptr< Cell > &first_cell)
	Topple cells if the critical slope is exceeded.

Private Attributes
CellManager	_cm
	The grid manager.
const Slope	_critical_slope
	The critical slope of the cells.
const unsigned int	_topple_num_grains
	The number of grains that topple; depends on the neighborhood size.
const bool	_write_only_avalanche_size
	If true, will only store the avalanche size, not the spatial data.
UniformIntDist	_cell_distr
	A distribution to select a random cell.
const std::shared_ptr< DataSet >	_dset_slope
	Dataset to store the slopes of all cells for all time steps.
const std::shared_ptr< DataSet >	_dset_avalanche
	Dataset to store the avalanche state of all cells for all time steps.
const std::shared_ptr< DataSet >	_dset_avalanche_size
	Dataset to store the avalanche size for each time step.
RuleFunc	_reset
	Resets cells for the next iteration.

Additional Inherited Members
Protected Member Functions inherited from Utopia::Model< SandPile, SandPileTypes >
void	__perform_step ()
	Perform the computation of a step.
void	__monitor ()
	Monitor information in the terminal.
void	__write_data ()
	Write data; calls the implementation's write_data method.
void	__write_initial_state ()
	Write the initial state.
void	increment_time (const Time dt=1)
	Increment time.
void	__prolog ()
	The default prolog of a model.
void	__epilog ()
	The default epilog of a model.
SandPile &	impl ()
	cast to the derived class
const SandPile &	impl () const
	const cast to the derived interface
Protected Attributes inherited from Utopia::Model< SandPile, SandPileTypes >
const std::string	_name
	Name of the model instance.
const std::string	_full_name
	The full name within the model hierarchy.
const Level	_level
	The level within the model hierarchy.
const Config	_cfg
	Config node belonging to this model instance.
const std::shared_ptr< RNG >	_rng
	The RNG shared between models.
const std::shared_ptr< spdlog::logger >	_log
	The (model) logger.
std::shared_ptr< Space >	_space
	The space this model resides in.
Time	_time
	Model-internal current time stamp.
const Time	_time_max
	Model-internal maximum time stamp.
const std::shared_ptr< DataGroup >	_hdfgrp
	The HDF group this model instance should write its data to.
const Time	_write_start
	First time at which write_data is called.
const Time	_write_every
	How often to call write_data from iterate.
Monitor	_monitor
	The monitor.
DataManager	_datamanager
	Manager object for handling data output; see DataManager.
Static Protected Attributes inherited from Utopia::Model< SandPile, SandPileTypes >
static constexpr WriteMode	_write_mode
	Which data-writing mode the base model should use.

Detailed Description

The SandPile Model.

The SandPile model simulates a sand pile under the influence of new grains of sand that get added every iteration. The sand reaches a critical state _critical_slope, after which it collapses, passing sand on to the neighboring cells

Member Typedef Documentation

Base

using Utopia::Models::SandPile::SandPile::Base = Model<SandPile, SandPileTypes>

The base model's type.

Cell

using Utopia::Models::SandPile::SandPile::Cell = typename CellManager::Cell

Cell type.

CellContainer

using Utopia::Models::SandPile::SandPile::CellContainer = std::vector<std::shared_ptr<Cell> >

Cell container type.

CellManager

using Utopia::Models::SandPile::SandPile::CellManager = Utopia::CellManager<CellTraits, SandPile>

The type of the cell manager.

DataSet

using Utopia::Models::SandPile::SandPile::DataSet = typename Base::DataSet

Data type for a dataset.

RuleFunc

using Utopia::Models::SandPile::SandPile::RuleFunc = typename CellManager::RuleFunc

Supply a type for rule functions that are applied to cells.

UniformIntDist

using Utopia::Models::SandPile::SandPile::UniformIntDist = typename std::uniform_int_distribution<std::size_t>

The uniform integer distribution type to use.

Constructor & Destructor Documentation

SandPile()

template<class ParentModel >

Utopia::Models::SandPile::SandPile::SandPile ( const std::string &  name, ParentModel &  parent_model, const DataIO::Config &  custom_cfg = {}  )

inline

Construct the SandPile model.

Parameters

name	Name of this model instance; is used to extract the configuration from the parent model and set up a HDFGroup for this instance
parent_model	The parent model this model instance resides in
custom_cfg	A custom configuration to use instead of the one extracted from the parent model using the instance name

                                         {}
    )
    :
        // Initialize first via base model
        Base(name, parent_model, custom_cfg),

        // Initialize the cell manager, binding it to this model
        _cm(*this),

        // Initialize other class members
        _critical_slope(get_as<Slope>("critical_slope", _cfg)),
        _topple_num_grains(_cm.nb_size()),

        // Writing-related parameters
        _write_only_avalanche_size(
            get_as<bool>("write_only_avalanche_size", _cfg, false)
        ),

        // Initialize the distribution such that a random cell can be selected
        _cell_distr(0, _cm.cells().size() - 1),

        // create datasets
        _dset_slope(this->create_cm_dset("slope", _cm)),
        _dset_avalanche(this->create_cm_dset("avalanche", _cm)),
        _dset_avalanche_size(this->create_dset("avalanche_size", {}))
    {
        // Check neighborhood mode; currently does not work with Moore
        if (_cm.nb_mode() != NBMode::vonNeumann) {
            throw std::invalid_argument(
                "Other neighborhoods than vonNeumann are not supported!"
            );
        }

        // Add a dimension label for the avalanche size dataset and store the
        // size of the grid as attribute, allowing to compute the avalanche
        // size area fraction without the need for spatial data
        _dset_avalanche_size->add_attribute("dim_names", "time");
        _dset_avalanche_size->add_attribute("num_cells", _cm.cells().size());

        // Perform initial step
        this->_log->info("Adding first grain of sand and letting topple ...");
        this->_log->debug("Toppling size: {}", _topple_num_grains);

        if (_cm.cells().size() > 4000) {
            this->_log->info("With {} cells, this may take a while ...",
                             _cm.cells().size());
        }
        topple(add_sand_grain());

        // Done.
        this->_log->info("{} all set up.", this->_name);
    }

Member Function Documentation

add_sand_grain()

const std::shared_ptr< Cell > & Utopia::Models::SandPile::SandPile::add_sand_grain ( )

inlineprivate

Select a random cell, add a grain of sand to it, and return it.

                                                {
        // Select a random cell to be modified
        auto& cell = _cm.cells()[_cell_distr(*this->_rng)];

        // Adjust that cell's state: add a grain of sand
        this->_log->trace("Adding grain of sand to cell {} ...", cell->id());
        cell->state.slope += 1;

        // As the slope of this grain changed, it is regarded as "in avalanche"
        // NOTE This does NOT mean that it is supercritical and that it will
        //      lead to toppling in the topple method.
        cell->state.in_avalanche = true;

        // Return the cell reference such that the topple method can use that
        // information to do its thing
        return cell;
    };

avalanche_size()

unsigned int Utopia::Models::SandPile::SandPile::avalanche_size ( ) const

inlineprivate

Calculate the avalanche size.

Counts all cells that are marked as in_avalanche.

                                        {
        return
            std::accumulate(_cm.cells().begin(), _cm.cells().end(),
                0,
                [](unsigned int sum, const auto& cell){
                    if (cell->state.in_avalanche) {
                        return sum + 1;
                    }
                    return sum;
                }
            );
    }

monitor()

void Utopia::Models::SandPile::SandPile::monitor ( )

inline

Supply monitor information to the frontend.

Provides 'avalanche_size' at the current time step

                    {
        // Supply the last avalanche size to the monitor
        this->_monitor.set_entry("avalanche_size", avalanche_size());
        // NOTE As the monitor is called very infrequently, it is not a large
        //      overhead to re-calculate the avalanche size here; cheaper and
        //      simpler than storing it and implementing logic of whether to
        //      re-calculate it or not.
    }

perform_step()

void Utopia::Models::SandPile::SandPile::perform_step ( )

inline

Perform an iteration step.

                         {
        // Reset cells: All cells are not touched by an avalanche
        apply_rule<Update::async, Shuffle::off>(_reset, _cm.cells());

        // Add a grain of sand and, starting from the cell the grain fell on,
        // let all supercritical cells topple until a relaxed state is reached
        topple(add_sand_grain());
    }

topple()

void Utopia::Models::SandPile::SandPile::topple ( const std::shared_ptr< Cell > &  first_cell )

inlineprivate

Topple cells if the critical slope is exceeded.

Starting from the first_cell, every time a cell topples the neighbors are also checked whether they need to topple. This is implemented by adding them into a queue and toppling until the queue is empty.

Parameters

first_cell

The first cell from which the topple avalanche starts

                                                       {
        this->_log->trace("Now toppling all supercritical cells ...");

        // Create a queue that stores all the cells that need to topple
        std::queue<std::shared_ptr<Cell>> queue;
        queue.push(first_cell);

        while (not queue.empty()) {
            // Get the first element from the queue, extract its state and
            // remove it from the queue.
            const auto& cell = queue.front();
            auto& state = cell->state;
            queue.pop();

            // A cell will topple only if its slope is greater than the
            // critical slope.
            if (state.slope > _critical_slope) {
                state.slope -= _topple_num_grains;
                state.in_avalanche = true;

                // Add grains (=slopes) to the neighbors
                // and add only neighbors with supercritical slope to the queue
                for (const auto& nb : _cm.neighbors_of(cell)){
                    auto& nb_slope = nb->state.slope;
                    nb_slope += 1;
                    if (nb_slope > _critical_slope){
                        queue.push(nb);
                    }
                }
            }
        }
    }

write_data()

void Utopia::Models::SandPile::SandPile::write_data ( )

inline

Write the cell slope and avalanche flag to the datasets.

                       {
        // Calculate and write the avalanche size; may stop after that
        _dset_avalanche_size->write(avalanche_size());

        if (_write_only_avalanche_size) {
            return;
        }

        // Write the slope of all cells
        _dset_slope->write(_cm.cells().begin(), _cm.cells().end(),
            [](const auto& cell) {
                return cell->state.slope;
            }
        );

        // Write a mask of whether a cell was touched by an avalanche. Most
        // feasible data type for that is char, which is the only C-native
        // 8-bit data type and thus the only type supported by HDF5
        _dset_avalanche->write(_cm.cells().begin(), _cm.cells().end(),
            [](const auto& cell) {
                return static_cast<char>(cell->state.in_avalanche);
            }
        );
    }

Member Data Documentation

_cell_distr

UniformIntDist Utopia::Models::SandPile::SandPile::_cell_distr

private

A distribution to select a random cell.

_cm

CellManager Utopia::Models::SandPile::SandPile::_cm

private

The grid manager.

_critical_slope

const Slope Utopia::Models::SandPile::SandPile::_critical_slope

private

The critical slope of the cells.

_dset_avalanche

const std::shared_ptr<DataSet> Utopia::Models::SandPile::SandPile::_dset_avalanche

private

Dataset to store the avalanche state of all cells for all time steps.

_dset_avalanche_size

const std::shared_ptr<DataSet> Utopia::Models::SandPile::SandPile::_dset_avalanche_size

private

Dataset to store the avalanche size for each time step.

_dset_slope

const std::shared_ptr<DataSet> Utopia::Models::SandPile::SandPile::_dset_slope

private

Dataset to store the slopes of all cells for all time steps.

_reset

RuleFunc Utopia::Models::SandPile::SandPile::_reset

private

Initial value:

= [](const auto& cell){
        cell->state.in_avalanche = false;

        return cell->state;
    }

Resets cells for the next iteration.

Marks cell as untouched by the avalanche and updates the slope to the cached future slope

                                          {
        cell->state.in_avalanche = false;

        return cell->state;
    };

_topple_num_grains

const unsigned int Utopia::Models::SandPile::SandPile::_topple_num_grains

private

The number of grains that topple; depends on the neighborhood size.

_write_only_avalanche_size

const bool Utopia::Models::SandPile::SandPile::_write_only_avalanche_size

private

If true, will only store the avalanche size, not the spatial data.

---

The documentation for this class was generated from the following file:

• src/utopia/models/SandPile/SandPile.hh
